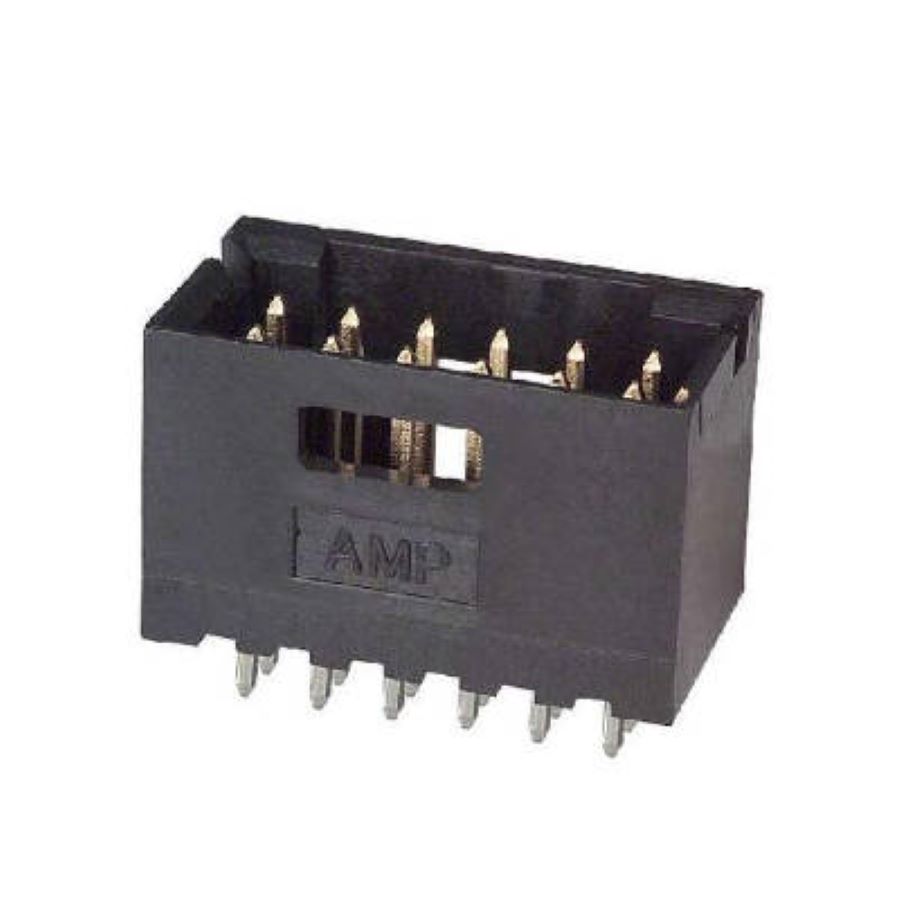

5-102618-4
Manufacturer:
TE Connectivity
Mfr.Part #:
5-102618-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 18.08 mm |
| Width | 15.5448 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 250 V |
| Height | 11.18 mm |
| Packaging | Tray |
| Depth | 10.16 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Number of Poles | 12 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Detent |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 8.0772 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.397 mm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 8.08 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 1.68 mm |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.18 mm |
Stock: 149
Distributors
pcbx
pcbxUnit Price$1.99027
Ext.Price$1.99027
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.99027 | $1.99027 |
| 10 | $1.69618 | $16.96180 |
| 25 | $1.63377 | $40.84425 |
| 50 | $1.62693 | $81.34650 |
| 100 | $1.43286 | $143.28600 |
| 300 | $1.31517 | $394.55100 |
| 500 | $1.20714 | $603.57000 |
| 1000 | $1.10799 | $1107.99000 |
